3600lm Solar Street Light

LHY series is a high power series ALL IN ONE SOLAR LED STREET LIGHT , it becomes more and more popular because of its appearance. Rather than regular all in one solar led street light, it adopts aluminium die casting fixture instead of ABS fixture.
LHY series is also an intelligent by combining a programable MPPT controller , recyclable LifePO4 lithium battery system whose lifetime is more than 2000 cycles, high quality illumination LED source and sensitive ‘Smart Eye’ motion sensor, to realize efficient cost , easier maintenance , saving energy. And using led module with practical lumens up to 140lm/w. With all components as a complete system , its installation is very easy, can be mounted to poles or walls . Very flexible and vast potential application.
Model:LHY – 300
Solar Panel Polycrystalline 5V 40W
Luminous Flux 3600LM
LED Brand Sanan
Battery LiFPO4 3.2V 40Ah
Changing Time 6-8Hours
Working Time 24-36Hours

LHY series is a high power series ALL IN ONE SOLAR LED STREET LIGHT , it becomes more and more popular because of its appearance. Rather than regular all in one solar
led street light, it adopts aluminium die casting fixture instead of ABS fixture. LHY series is also an intelligent by combining a programable MPPT controller , recyclable
LifePO4 lithium battery system whose lifetime is more than 2000 cycles, high quality illumination LED source and sensitive ‘Smart Eye’ motion sensor, to realize efficient
cost , easier maintenance , saving energy. And using led module with practical lumens up to 140lm/w. With all components as a complete system , its installation is very easy,
can be mounted to poles or walls . Very flexible and vast potential application.

Streamlined design. Higher efficacy LED. PWM/MPPT controller is optional .Multiple optical designs better performance. Easy installation and maintenance.LHY series Solar LED
street light will provide the best lumen output, the best stability and very long lifetime. Provide over 2 years warranty for whole fixture.

          ITEM

LHY-300

LHY-400

LHY-500

          Solar Panel

Polycrystalline 5V 40W

Polycrystalline 5V 45W

Polycrystalline 5V 53W

          Battery Parameters

LiFPO4 3.2V 40AH

LiFPO4 3.2V 45AH

LiFPO4 3.2V 50AH

          LED Brand

Sanan

          Lamp Body Size

703*365*86mm

810*365*86mm

916*365*86mm

          CCT

6400K

          Changing Time

6-8Hours

          Discharging Time

>18Hours

          Luminous Flux

3600LM

5200LM

6800LM

          Operating Temperature

-20℃ to 60℃

          Material

Aluminum

          Light Distribution

II-S,II-M,III-M

          Certificate

CE/RoHs

          Warranty

2Years

Key Components & Advantages

Patented-Design

Patent Design

Patents in utility & appearance registered in China.

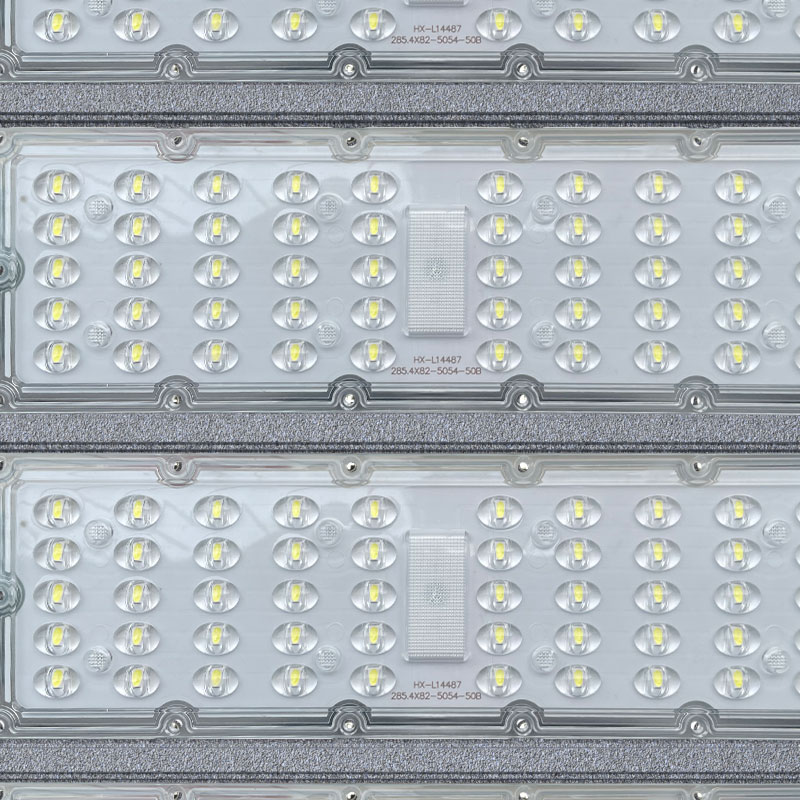

High-brightness-LED

Hight Brightness LED

We use high light efficiency LED chip.

OEM-production

OEM Production

Our factory can provide OEM production services, custom packaging, brand logo

Widely-application

Widely Application

Products are widely used in yard, garden and other areas.

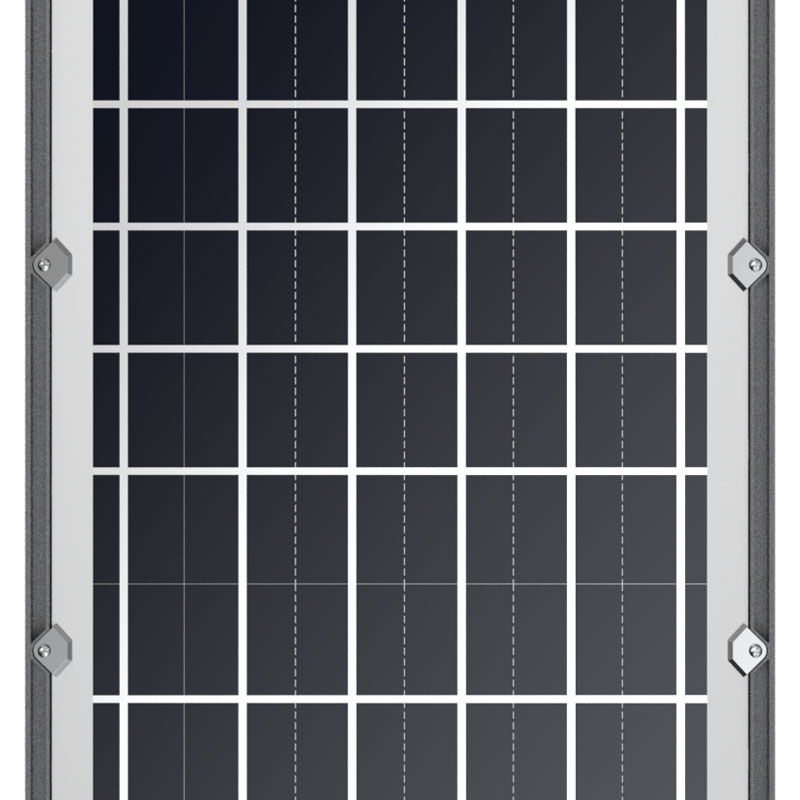

Solar-panel

Solar Panel

Higher charging efficiency

wellmade-package

Packing

Well made package
